Specification

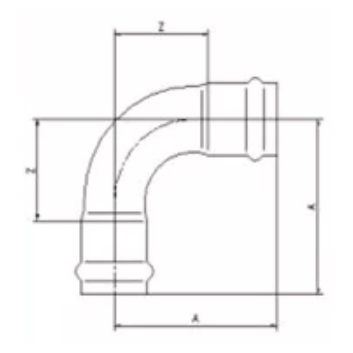

No.	Size (OD)	a	z
90FFE15	15	41	20
90FFE22	22	62	36
90FFE28	28	54	30
90FFE35	35	88	62
90FFE42	42	113	83
90FFE54	54	139	104
90FFE76	54	139	104
90FFE88	54	139	104
90FFE108	54	139	104

No.	Size (OD)	a	a1	z	z1
90E2215	22 x 15	48	56	27	32

No.	Size (OD)	a	z	L1	L2
90SE15	15	48	27	120	100
90SE22	22	58	34	127	100
90CE28	28	66	42	135	100
90SE35	35	88	62	130	68
90SE42	42	113	83	160	77
90SE54	54	139	104	205	100

No.	Size (OD)	a	z
45FFE15	15	36	15
45FFE22	22	42	18
45FFE28	28	46	22
45FFE35	35	55	25
45FFE42	42	68	35
45FFE54	54	85	47
45FFE76	42	68	35
45FFE88	54	85	47
45FFE108	42	68	35

No.	Size (OD)	a	z	L1	L2
45SE15	15	36	15	100	32
45SE22	22	42	18	116	100
45SE28	28	46	22	120	100
45SE35	35	55	25	75	50
45SE42	42	68	35	105	70
45SE54	54	85	47	130	83

No.	Size (OD)	a	z
R1815	22 x 15	60	15
R2215	28 x 15	66	21
R2218	28 x 22	64	16
R2815	35 x 22	92	43
R2818	35 x 28	79	30
R2822	42 x 22	95	42
R3515	42 x 28	84	35
R3518	42 x 35	87	31
R3522	54 x 22	110	52
R3528	54 x 28	109	51
R4222	54 x 35	102	41
R4228	54 x 42	100	35
R4235	54 x 35	102	41
R5418	54 x 42	100	35
R5422	54 x 35	102	41
R5428	54 x 42	100	35
R5435	54 x 35	102	41
R5442	54 x 42	100	35
R7618	54 x 35	102	41
R7622	54 x 42	100	35
R7628	54 x 35	102	41
R7635	54 x 42	100	35
R7642	54 x 35	102	41
R7654	54 x 42	100	35
R8818	54 x 35	102	41
R8822	54 x 42	100	35
R8828	54 x 35	102	41
R8835	54 x 42	100	35
R8842	54 x 35	102	41
R8854	54 x 42	100	35
R8876	54 x 35	102	41
R10818	54 x 42	100	35
R10822	54 x 35	102	41
R10835	54 x 42	100	35
R10842	54 x 35	102	41
R10854	54 x 42	100	35
R10876	54 x 35	102	41
R10888	54 x 42	100	35

No.	Size (OD)	a	z
RP2215	22 x 15	106	85

No.	Size (OD)	a	z
C15	15	36	15
C22	22	53	11
C28	28	60	12
C35	35	60	12
C42	42	74	10
C54	54	84	8
C76	42	74	10
C88	54	84	8
C108	42	74	10

No.	Size (OD)	a	b	z1	z2
T15	15	38	38	17	17
T22	22	46	46	22	22
T2215	22x15	46	42	20	21
T28	28	51	51	27	27
T2815	28x25	51	53	27	32
T2822	54	51	51	27	27
T35	35	52	60	26	34
T3522	35 x 22	52	52	26	29
T3528	35 x 28	52	56	26	31
T42	42	59	65	29	35
T4222	42 x 22	59	55	29	32
T4228	42 x 28	59	61	29	36
T4235	42 x 35	59	63	29	37
T54	54	70	78	35	43
T5422	54 x 22	70	60	35	37
T5428	54 x 28	70	66	35	43
T5435	54 x 35	70	70	35	44
T5442	54 x 42	70	70	35	40

No.	Size (OD)	a	z
P15	15	31	10
P22	22	42	18
P28	28	44	20
P35	35	49	23
P42	42	53	23
P54	54	60	25
P28	76	44	20
P35	88	49	23
P42	108	53	23

No.	Size (OD)	a	z
ASM1512	15 x 1/2	57	36
ASM2234	22 x 3/4	64	40
ASM281	28 x 1	68	44
ASM35114	35 x 1 1/4	95	69
ASM42112	42 x 1 1/2	95	65
ASM542	54 x 2	113	78

No.	Size (OD)	a	z
ASF1512	15 x 1/2	38	38
ASF2234	22 x 3/4	54	30
ASF281	28 x 1	57	33
ASF35114	35 x 11/4	80	54
ASF42112	42 x 11/2	79	49
ASF542	54 x 2	95	60

No.	Size (OD)	a	b	z
AEM1512	15 x 1/2	48	52	27
AEM2234	22 x 3/4	58	62	34
AEM281	28 x 1	66	73	42
AEM35114	35 x 11/4	88	110	62
AEM42112	42 x 11/2	113	143	83
AEM542	54 x 2	139	159	104

No.	Size (OD)	a	b	z
AEF1512	15 x 1/2	48	43	27
AEM2234	22 x 3/4	58	72.5	36
AEM2812	28 x 1/276	76	85	44
AEM2834	28 x 3/4	76	84	44
AEM281	28 x 1	76	84	44
AEM3512	35 x 1/2	87	152	49
AEM3534	35 x 3/4	87	130	49
AEM351	35 x 1	87	152	49
AEM35114	35 x 1 1/4	87	130	49
AEM35112	35 x 1 1/2	87	152	49
AEM4212	42 x 1/2	108	130	62
AEM4234	42 x 3/4	108	152	62
AEM421	42 x 1	108	130	62
AEM42114	42 x 1 /1/4	108	152	62
AEM42112	42 x 1 1/2	108	130	62
AEM5412	54 x 1/2	129	152	104
AEM5434	54 x 3/4	129	130	83
AEM541	42 x 1 /1/4	108	152	62
AEM54114	42 x 1 1/2	108	130	62
AEM54112	54 x 1/2	129	152	104
AEM542	54 x 3/4	129	130	83
AEM7612	42 x 1 /1/4	108	152	62
AEM883	42 x 1 1/2	108	130	62
AEM1084	54 x 1/2	129	152	104
AEM5434	54 x 3/4	129	130	83
